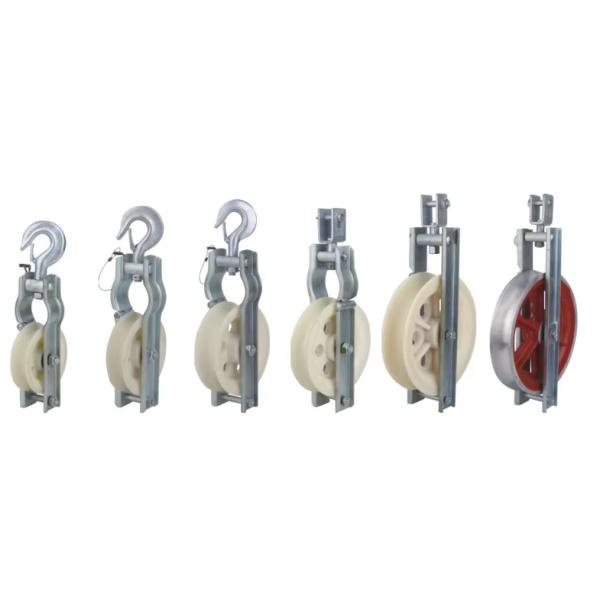

    Stringing Equipment Accessories Single Sheave Stringing Block

    Ask Lasest Price
    Brand Name : XINYA
    Model Number : SHDN
    Certification : ISO9001
    Price : get latest price
    Payment Terms : L/C,T/T,
    Supply Ability : 1000pieces/month
    Delivery Time : 10 days after payment
    • Product Details
    • Company Profile

    Stringing Equipment Accessories Single Sheave Stringing Block

    Stringing Equipment Accessories Single Sheave Stringing Block


    Uses:
    Used to spread the wire on the linear pole tower, the pressure nozzle and the wire rope connector, the rotary connector can pass through the groove.

    Notes:
    1.pulley is divided into hook type, hanging plate, ring type, order to indicate, special specifications can be customized. 2.the product model is composed of outside diameter × wheel width.
    Model
    Applicable conductor(LGJ)
    Rated load(KN)
    Weight(kg)
    Aluminum wheel
    Nylon wheel
    SHD-120x30
    25-70
    5
    1.8
    1.5
    SHD-160x40
    95-120
    10
    3.1
    2.6
    SHD-200x40
    150-240
    15
    3.5
    2.9
    SHD-200x60
    150-240
    15
    4.3
    3.3
    SHD-250x40
    150-240
    20
    5.0
    3.7
    SHD-250x60
    300-400
    20
    6.7
    5.8
    SHD-270x60
    300-400
    20
    7.0
    6.2
    SHD-320x60
    300~400
    30
    9.0
    8.3
    SHD-400x80
    400-500
    30
    12.5
    11.0
