    40KN Hydraulic Cable Tension Stringing Equipment With MC Nylon Bullwheel

    Ask Lasest Price
    Brand Name : XINYA
    Model Number : SA-YZ40A
    Payment Terms : L/C, T/T,
    Supply Ability : 1 Set/Sets per Month
    Delivery Time : 20-30 days after payment
    Certification : ISO
    Price : get latest price
    • Product Details
    • Company Profile

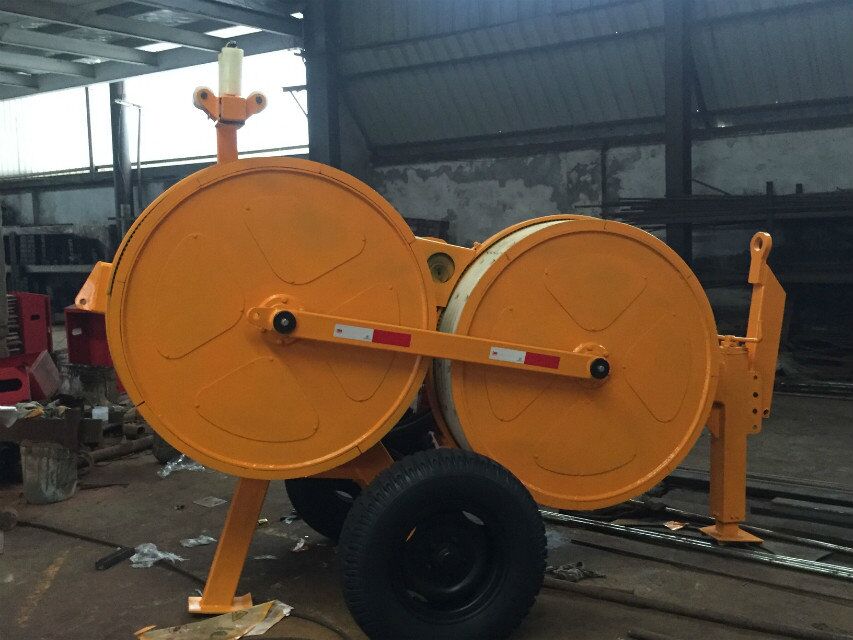

    40KN Hydraulic Cable Tension Stringing Equipment With MC Nylon Bullwheel

    40KN Hydraulic Cable Tension Stringing Equipment With MC Nylon Bullwheel


    Product Introduction

    The overhead transmission line tension stringing equipments are widely used in overhead transmission Line Conductor or OPGW tension stringing project. We are the only one to supply whole set of stringing equipment and tools for transmission line construction in China.

    We could supply whole set of stringing equipment and tools for transmission line up to 1000KV construction.


    Description

    a. They are widely used for stringing the conductors & cables(OPGW,ADSS,500kv tractiong rope,LGJ series,etc.).

    b. This machine has a set of tension early warning system,which can automatically adjust the speed according to the undue load or friction produced on the line and can keep the tension at setting value.

    c. Tension or pulling force can be preset,spring applied brake,reliable overhead protection mechanism,easy to operate.


    Application

    30KN Hydraulic wire tension device adequate to tension releasing various conducts and earthwires .and also useful for tension releasing OPGW optic cable compounded earthwire and ADSS self–stand optic cable etc .


    Feature

    Bullwheel with wearproof MC nylon lining segments.

    infinitely variable tension control and constant tension conductor stringing .

    spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety

    attached hydraulic power output interface to connect hydraulic reel stand .


    Main component

    Engine : Cummines water-cooled engine .

    Main pump/motor :Rexroth (BOSCH)

    Reducer :RR(Italian )

    Hydraulic valve:Rexroth (BOSCH)

    radiator:AKG

    hydraulic instrument:


    Technical Data

    Maximum Tension(kN)

    40

    Continuous Tension(kN)

    35

    Maximum speed (km/h)

    5

    Bullwheel bottom of groove diameter(mm)

    Φ1200

    Number of grooves

    5

    Maximum pullback (kN)

    40

    Maximum speedback (km/h)

    2

    Maximum suitable conductor diameter (mm)

    Φ32

    Engine power /speed (kW/rpm)

    37/2800

    Dimensions (mm)

    3400×1800×2400

    Weight(kg)

    2800
