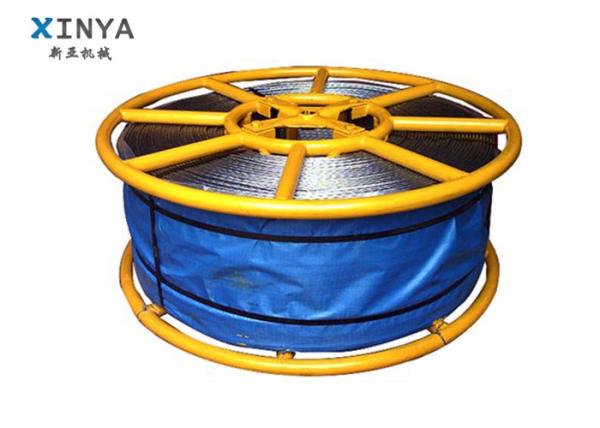

    Galvanized Anti Twist Wire Rope Weave Steel Non Rotating Wire Rope

    Ask Lasest Price
    Brand Name : XINYA
    Certification : ISO
    Price : Get Latest Price
    Payment Terms : L/C, T/T,
    Delivery Time : 10-15 after payment
    Model Number : -
    MOQ : 1000 Meter/Meters
    • Product Details
    • Company Profile

    Galvanized Anti Twist Wire Rope Weave Steel Non Rotating Wire Rope

    Galvanized Anti Twist Wire Rope Weave Steel Non Rotating Wire Rope

    Specifications
    1) Non rotating
    2) Soft and don't break
    3) Various structures

    Application
    Anti-twisting Woven Steel Wire Rope is applied to mechanical pulling and tensioning release conductors.

    Characteristics
    1. Braided 1960N/mm2 high -strength galvanized steel wire. If need other levels of strength, contact us.
    2. It is not available for small diameter grinding core pulling rope.

    Quality Control
    We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.

    Our Values
    1:Take First-Class Quality as Target and First-class Service.
    2:As Responsibility, To Succeed By Scientific Management.
    3:Customer in Heart, Quality in Hand, Technology in the Lead.

    Technical Data

    Product No.StructureDiameter(mm)Single bundle diameter(mm)Breaking Force(KN)
    80237Four Square eight shares72.028.6
    8023892.545.3
    80239113.065.2
    80240133.588.1
    80241154.0116.6
    80242






    Six Square twelve shares

    92.020.27
    80243112.592.27
    80244133.0110.26
    80245153.2130.52
    80246173.5151.20
    80247204.2224.4
    80248224.8307.2
    80249245.1343.34
    80250265.6382.26
