    DSJ-180 ALUMINUM CABLE HAULING MACHINE WITH 900KG CABLE PULLING FORCE

    Ask Lasest Price
    Brand Name : XINYA
    Model Number : DSJ-180
    Certification : ISO
    Price : get latest price
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets/month
    Delivery Time : 10 workdays after payment
    • Product Details
    • Company Profile

    DSJ-180 ALUMINUM CABLE HAULING MACHINE WITH 900KG CABLE PULLING FORCE

    Aluminum Cable Hauling Machine With 900KG Cable Pulling Force


    Application

    • Petroleum, Chemical, Industrial construction
    • Power Plant Extension
    • Long Way Laying of Cable Line
    • Conveying Power Cable
    • Other Channel, Cable Pipe
    • Substation and City Network Transmission Cable

    Characteristic:

    Driven by double caterpillars to make sure that the delivery force and gravitational force will affect at two direction. It’s good to protect the insulation layer of cable.

    The delivery force will be transferred by caterpillar which made by high strength DRC. Force uniform and wear well.

    Equipped with adjusted barrel, easy to operate.

    It will be very convenient to be equipped with a reel at the upper part as a lower power tractor.

    Low noise, small temperature rise for and easy maintenance.

    We can provide other matching product like DSJ electric control system(control box and branch box, four core sheath cable ) and reel as customer’s requirement.


    Features

    Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions,

    reduce labor intensity, improve work efficiency and ensure the safety.


    Technical Data

    Model TypeDSJ-150DSJ-180
    Line pulling(KGS)700900
    Pulling Speed(m/min)86
    Electric motor1.1KW *21.5KW * 2
    Oversize dimension950*500*4001020*590*400
    Weight(KGS)150180-200
    Cable diameterΦ30 - 180 mmΦ30 - 200 mm
    TransimissionI=45I=60
    Rubber sheet thickness25mm25mm

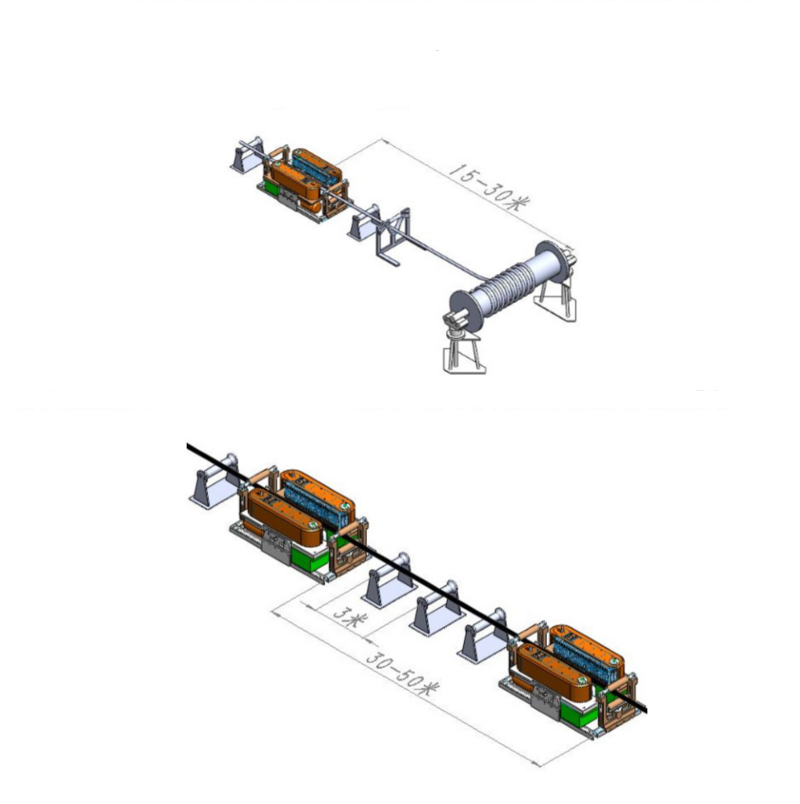

    Practical Application
