    Welded Steel Underground Cable Tools 2 Ton Cable Reel Trailer Cable Carriage Vehicle

    Ask Lasest Price
    Brand Name : XINYA
    Model Number : LZ-2
    Certification : ISO
    Price : US $1,000 - 5,000 / Set
    Payment Terms : L/C, T/T,
    Supply Ability : 10 set/sets per month
    Delivery Time : 20 days after payment
    • Product Details
    • Company Profile

    Welded Steel Underground Cable Tools 2 Ton Cable Reel Trailer Cable Carriage Vehicle

    Underground Cable Tools 2 Ton Cable Reel Trailer Cable Carriage Vehicle


    Quick Infomation

    1. Reel Carrier Trailer

    2. Material: Welded steel

    3. Max capacity:30-100kN

    4. Reel diameter:2400~3600mm

    5. Axel diameter:80-150mm


    Description:

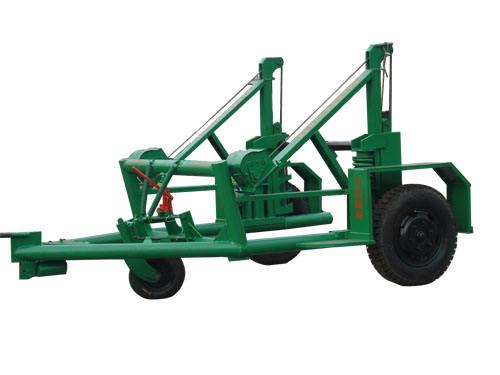

    The reel carrier is made of welded steel with protective coating. Two hydraulic jacks powered by a manual pump are used to lift the reel. one disc brakes acting on the reel shaft is designed to control the unwinding tension. Special models with different characteristics can be designed on demand.


    Specification:

    Model

    Max Capacity

    (kN)

    Reel Dimensions(mm)Overall dimensions(mm)

    Weight

    (kg)

    DiameterWidthAxel diameter
    DLG-3T3024001250803800×2300×2200900
    DLG-5T50280014501004000×2600×25001500
    DLG-8T80340018001204300×3200×27002300
    DLG-10T100360020001504600×3800×29003100

    Remarks: the trailer can be transported by container after disassembly.

    Please contact us if you have any requirement, and we can make products with special specification as your requirements.
