    MOTORIZED HYDRAULIC COMPRESSOR HYDRAULIC CRIMPING TOOLS WITH GASOLINE ENGINE 100 TONS 200 TONS

    Ask Lasest Price
    Brand Name : XINYA
    Model Number : QY-100/125/200
    Certification : ISO
    Price : get latest price
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets/week
    Delivery Time : 7-10 workdays after payment
    • Product Details
    • Company Profile

    MOTORIZED HYDRAULIC COMPRESSOR HYDRAULIC CRIMPING TOOLS WITH GASOLINE ENGINE 100 TONS 200 TONS

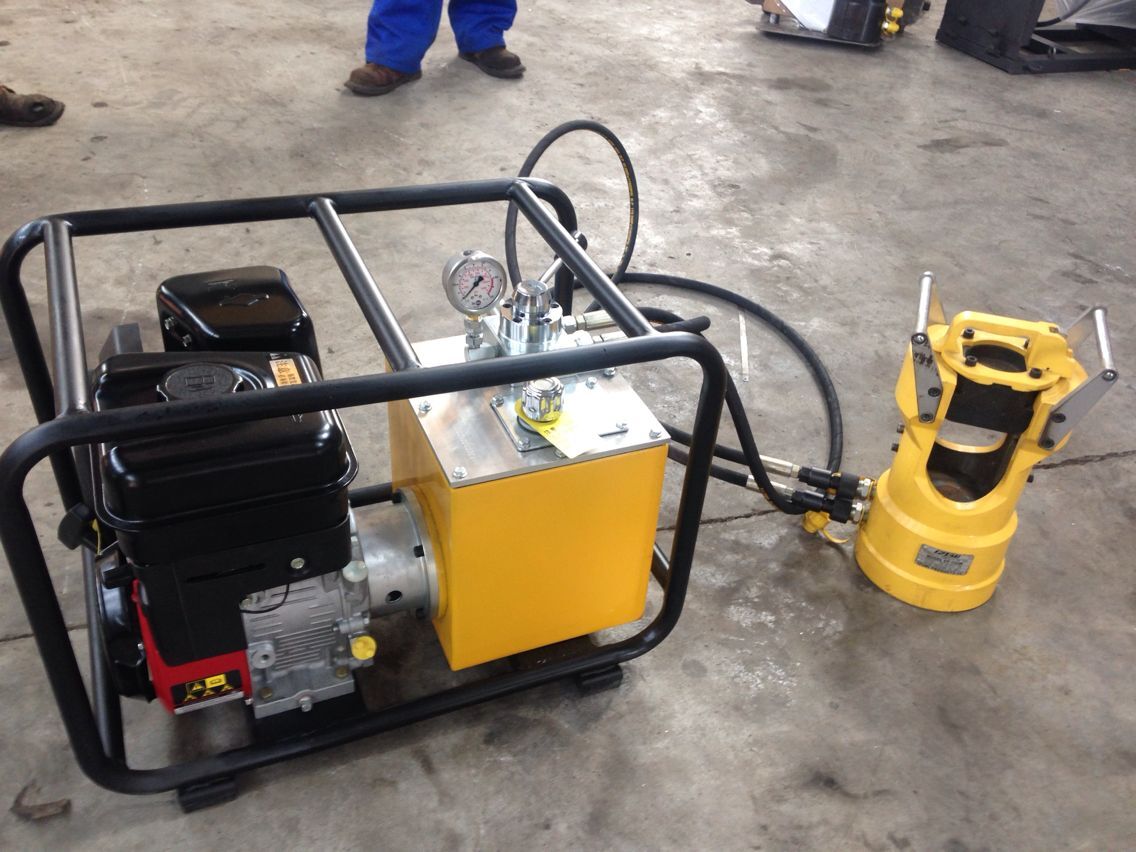

    Motorized Hydraulic Compressor Hydraulic Crimping Tool with Gasoline Engine 100 tons 200 tons


    Application:

    Motorized Hydraulic Compressor / Hydraulic press is used to join wire ends and strengthen damaged condcutor (restorative-repair).


    Technical Data:

    Superhigh Hydraulic Pump SP2H
    ModelSP2HHX-1
    Engine Power5.5HP(3.4KW) HONDA GX160 Petrol engine
    Engine Rotational speed4000r/min
    Rated Press/Delivery Capacity800bar / 1.8L/min (High)
    90bar / 9L/min (Low)
    Hydraulic Oil Model46# antiwear hydraulic oil
    Capacity of Hydraulic oil box19L
    Filling quantity of hydraulic oil15L
    Overall Dimension620×420×430mm
    Total Weight40kg(without hydraulic oil)
    Acting Style to the hydraulic cylinderdouble acting
    Hydraulic reversal valve for middle positionM(up-hold-down)

    Oil Hose standard length: 2.5 m/pc * 2pcs

    Note:

    Length of oil hose can be made as per your requirement.


    Hydraulic compression head QY-100:

    Output pressure:100 tons

    Rated working pressure:80MPa;

    Stroke:22mm

    Weight:33kgs


    Hydraulic compression head QY-200:

    Output pressure:200 tons

    Rated working pressure:80MPa;

    Stroke:40mm

    Weight:90kgs


    Hydraulic compression head QY-125:

    Max output pressure:125 tons;

    Rated working pressure:80MPa;

    Stroke:25mm;

    Weight:40Kg;
