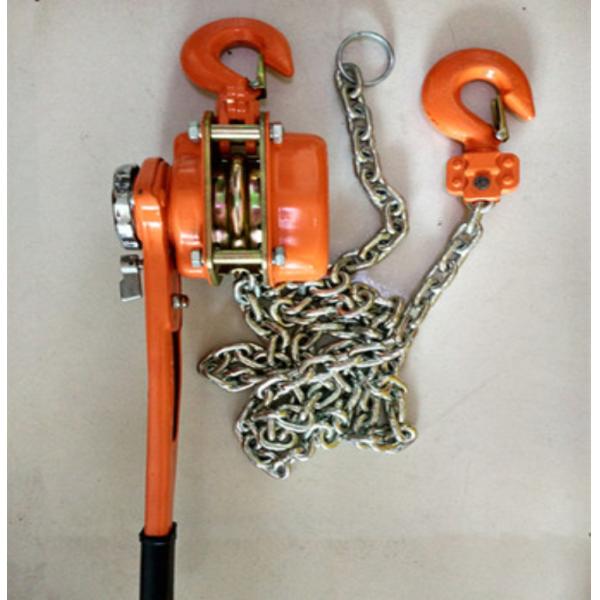

Tightening tools 1.5 T Lever Hoist Chain Pulley Block
Introduction
1. Hook:made of high-class alloy steel,it has high strength and high
security.
2. Components:main components are all made of high-class alloy steel,with high
precision and security.
3. Framework: slight design and more beautiful; with less weight and smaller
work area.
4. Plastic Plating: by adopting advanced plastic plating technology inside and
outside,it looks like a new one after years of operation.
5. Encloser made of high-classed steel,more firmly and dexterous.
Application
It is for the lifting of objects and mechanical traction,
tightening steel wire, aluminum wire .
Features
It is widely used in shipbuilding, electric power, transportation,
construction, mining, telecommunications and other sectors of the
equipment installation, lifting, pulling. Hand hoist is safe,
reliable, durable, good performance, easy to repair, small volume,
light weight, convenient to carry, not much manual force and high
efficiency, the perfect structure and beautiful appearance. Hand
chain hoist and hoist are called manual hoist. It is used to lift
weights by human, and it must not be extended operating handle.In
the operating process, the rest handle should be free follow-up but
not be blocked. Please select appropriate ton hoist according to
the load.
Used to tighten the wire, lifting equipment and it is suitable for
high altitude operation.
Brake device adopts double pawl, so it is durable, safe and
reliable.
The handle design of bi-directional ratchet, the handle can be
reciprocating operation during up and down.
Design of brake and clutch device, when there’s no load, the
position will be in the middle.
Can be hand chain and it can improve the work efficiency.
Technical Data
| Model | 0.75ton | 1.5ton | 3ton | 6ton |
| Capacity(t) | 0.75 | 1.5 | 3 | 6 |
| Standard Lift(m) | 1.5 | 1.5 | 1.5 | 1.5 |
| Running test Load(t) | 9.2 | 18.4 | 36.8 | 73.5 |
| Effort required to lift max load(N) | 148 | 216 | 336 | 345 |
| Chain diameter(mm) | 6.3 | 7.1 | 9 | 9 |
| Net Weight(kg) | 6.6 | 11.65 | 21.1 | 23.7 |
| Dimensions(mm) | A | 155 | 170 | 198 | 198 |
| B | 128 | 147 | 182 | 230 |
| C | 310 | 350 | 470 | 590 |
| D | 240 | 365 | 365 | 365 |
| G | 28 | 36 | 47 | 49 |
Characteristic
1. Structure of advanced, safe, reliable, durable
2. High efficiency, easy operation, comfort
3. Small size, light weight, easy to carry
4. All structural steel
5. super alloy chain
6. All of gears
7. gear and rotating the shaft has bearings or bushings
8. Product surface after spray treatment
